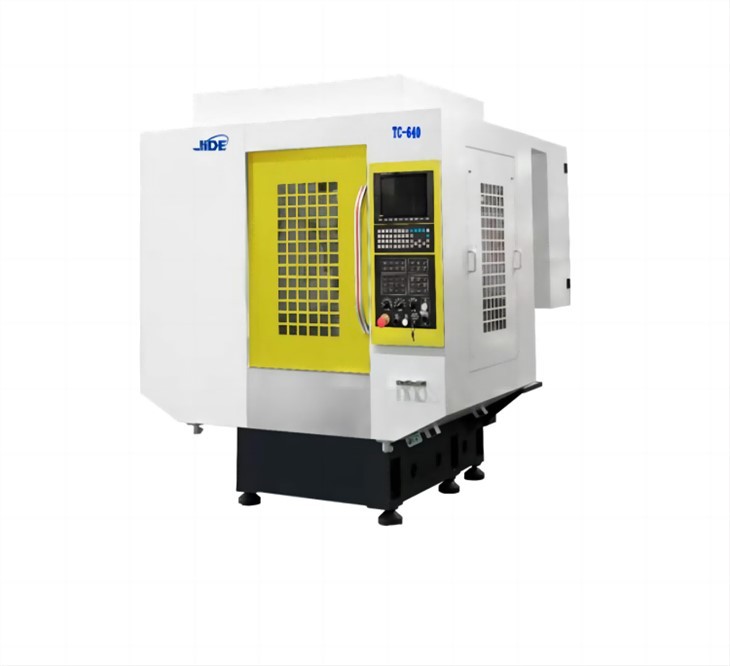

CNC Drilling Machine

Characteristics of CNC Drilling and Tapping Machine:

1. Precise and efficient: CNC drilling  machine  and tapping machines are equipped with advanced drilling and tapping technologies which provide high precision and efficient operation.

2. Multi-axis control: The CNC drilling and tapping machine features multi-axis control which facilitates complex operations such as drilling multiple holes at various angles and depths.

3. Automatic tool changing system: The machine comes with an automatic tool changing system which enables seamless transitions between drilling and tapping operations.

4. Versatility: CNC drilling and tapping machines can work with a wide range of materials, including steel, aluminum, brass, and copper.

5. User-friendly interface: The machine is designed with a user-friendly interface and simple controls, which makes it easy to operate for novice and experienced operators.

6. Superior quality: CNC drilling and tapping machines produce superior quality components with high precision and accuracy.

Machining Range of CNC Drilling and Tapping Machine:

The CNC drilling and tapping machine is used for a wide range of drilling and tapping activities. Some of the machining ranges of the machine include:

1. Hole drilling: The machine can drill holes of various sizes and shapes, including counterbore, countersink, and through holes.

2. Tapping: The machine can tap threads of various sizes on different types of materials.

3. Milling: The CNC drilling and tapping machine can perform a range of milling activities, such as slotting, cutting, and chamfering.

4. Engraving: The machine can perform precise engraving work on metal and plastic materials.

5. Automatic feeding: The machine features an automatic feeding system for efficient and continuous operation.

Parameter

The standard configuration

1>. Japan Mitsubishi M80B controller

2>. Directly coupled spindle 20000 rpm

3>. Clamp Arm Tool Magazine 21T Servo

4>. Flush chip removal

5>. Automatic lubrication system

6>. Foundation screws and spacers

7>. Toolbox

8>. Working light (explosion proof light)

9>. Warning light

10>. Spindle blowing device

11>. Fully enclosed cover

12>. Cooling water system

13>. Air Gun

14>. Rigid tapping function

15>. Electric box heat exchanger

16>. "Program Manual", "Operation Manual"

CNC drilling  machine  and tapping machine programming involves converting a design drawing into a set of instructions that can be executed by the machine. The programming process involves the following steps:

1. Programming software: The first step involves selecting programming software compatible with the CNC drilling and tapping machine. This software allows the programmer to create code that controls the machine's movements.

2. Inputting design specifications: Once the programming software is in place, the next step is to input specifications from the design drawing. This includes the location of the holes to be drilled, the size of the holes, the depth of the holes, and the threading requirements.

3. Creating the code: With the specifications in place, the programmer creates a set of instructions in a programming language recognized by the machine. This code includes commands for the machine to move in specific directions and at specific speeds, to drill at specific locations and depths, and to tap threads.

4. Running the program: Once the code is complete, it is loaded into the CNC drilling and tapping machine's memory. The machine can then execute the code autonomously, drilling and tapping the workpiece according to the programmed specifications.

Overall, CNC drilling and tapping machine programming requires precision and attention to detail, as small errors in the programming can result in significant deviations from the desired specifications. However, with careful planning and execution, the result is an accurate, efficient, and repeatable drilling and tapping process.
